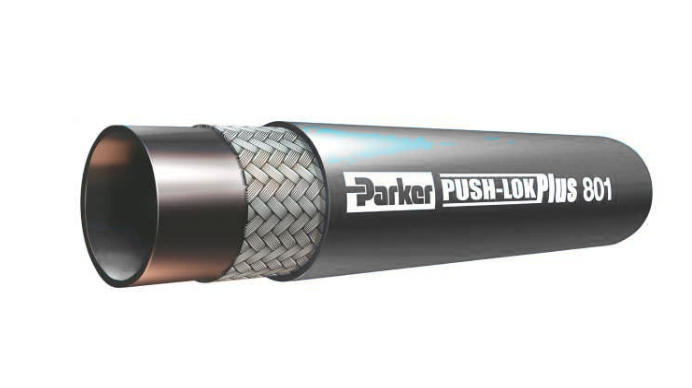

Parker 801-10 Hose - Black
Parker 801-10 Hose - Black
Regular price
$7.00
Regular price
Sale price
$7.00
Unit price
/
per
Couldn't load pickup availability

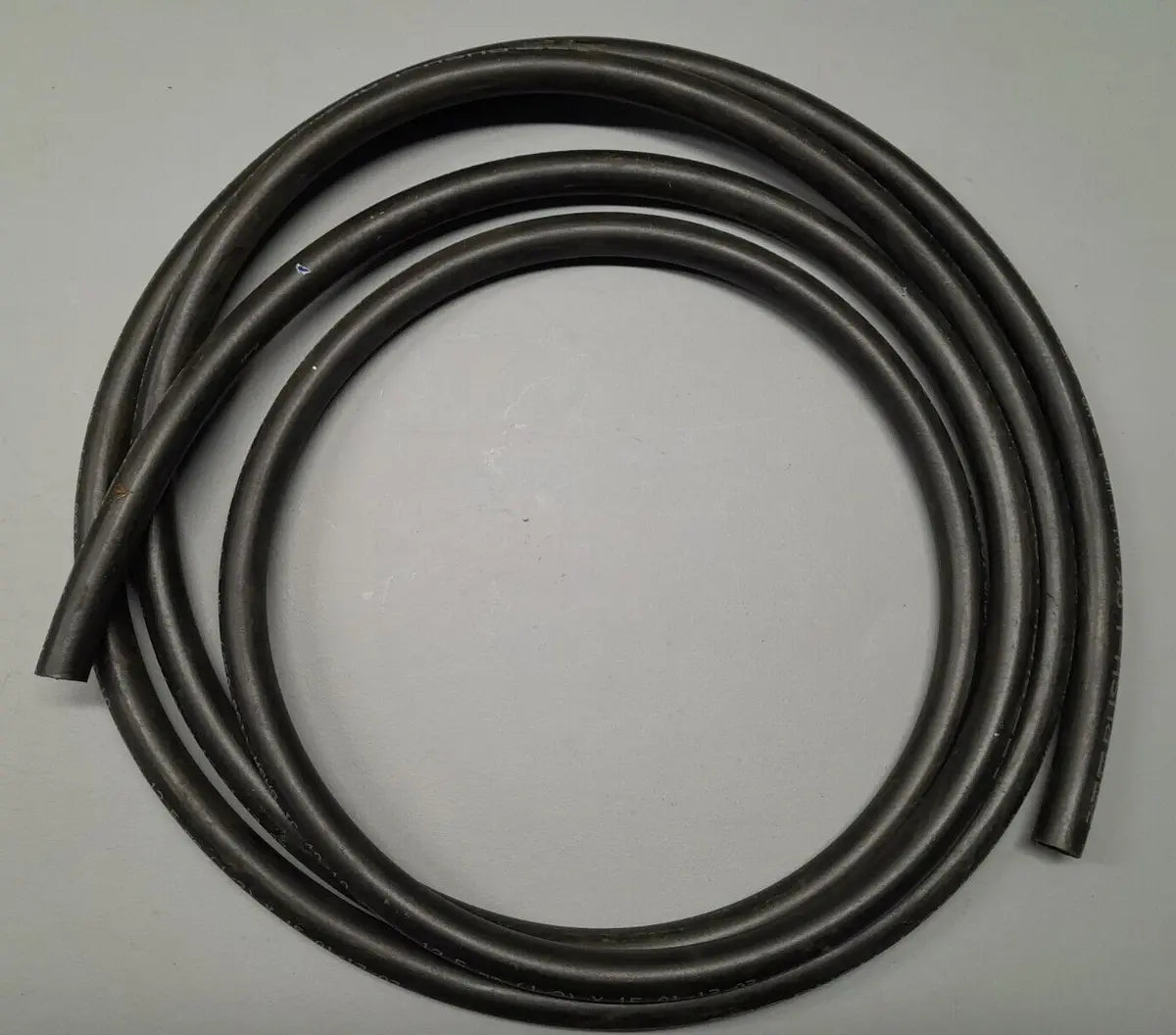

This hose is ordered by the foot.

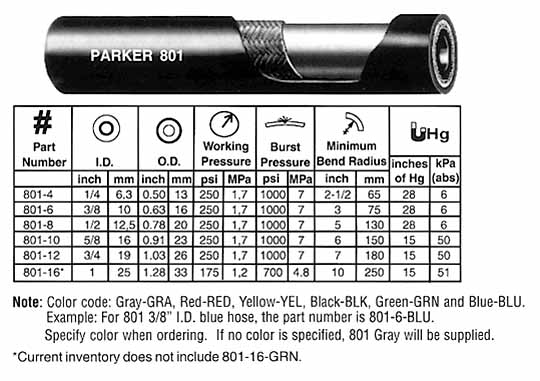

This is 5/8" HOSE
-4 = 1/4"
-6 = 3/8"
-8 = 1/2"
-10 = 5/8"
Tech Specifications:
| Minimum Operating Temperature | (Oil) -40 °F |
| Maximum Operating Temperature | (Water) 85 °C |
| Maximum Operating Temperature | (Air) 158 °F |
| Hose Inside Diameter | 16 mm |
| Maximum Operating Temperature | (Air) 70 °C |
| Cover Color | Black |
| Minimum Bend Radius | 150 mm |
| Hose Outside Diameter | 0.91 inch |
| Maximum Operating Temperature | (Oil) 125 °C |
| Application | Petroleum base hydraulic fluids, lubricating oils, and antifreeze solutions |
| Weight | 0,28 kg/m |
| Vacuum Pressure Rating | 15 Inch-Hg |
| Weight | 0.19 lb/ft |
| Hose Inner Tube Material | Synthetic rubber |
| Vacuum Pressure Rating | 381 mm-Hg |
| Hose I.D. (size) | 10 |
| Compatible Fitting | HY or 82 Series Fittings |
| Hose Inside Diameter | 5/8 inch |
| Maximum Operating Pressure | 2,1 MPa |
| Division | Hose Products Division |
| Cover Material | Synthetic rubber, MSHA accepted |
| Hose Outside Diameter | 23,0 mm |
| Maximum Operating Temperature | (Water) 185 °F |
| Minimum Operating Temperature | (Oil) -40 °C |
| Maximum Operating Pressure | 300 psi |
| Hose Cover Type | Synthetic rubber |
| Minimum Bend Radius | 6 inch |
| Design Factor | 4:01 |
| Nominal Hose Inside Diameter | 16 |
| Maximum Operating Temperature | (Oil) 257 °F |
