Colliflower

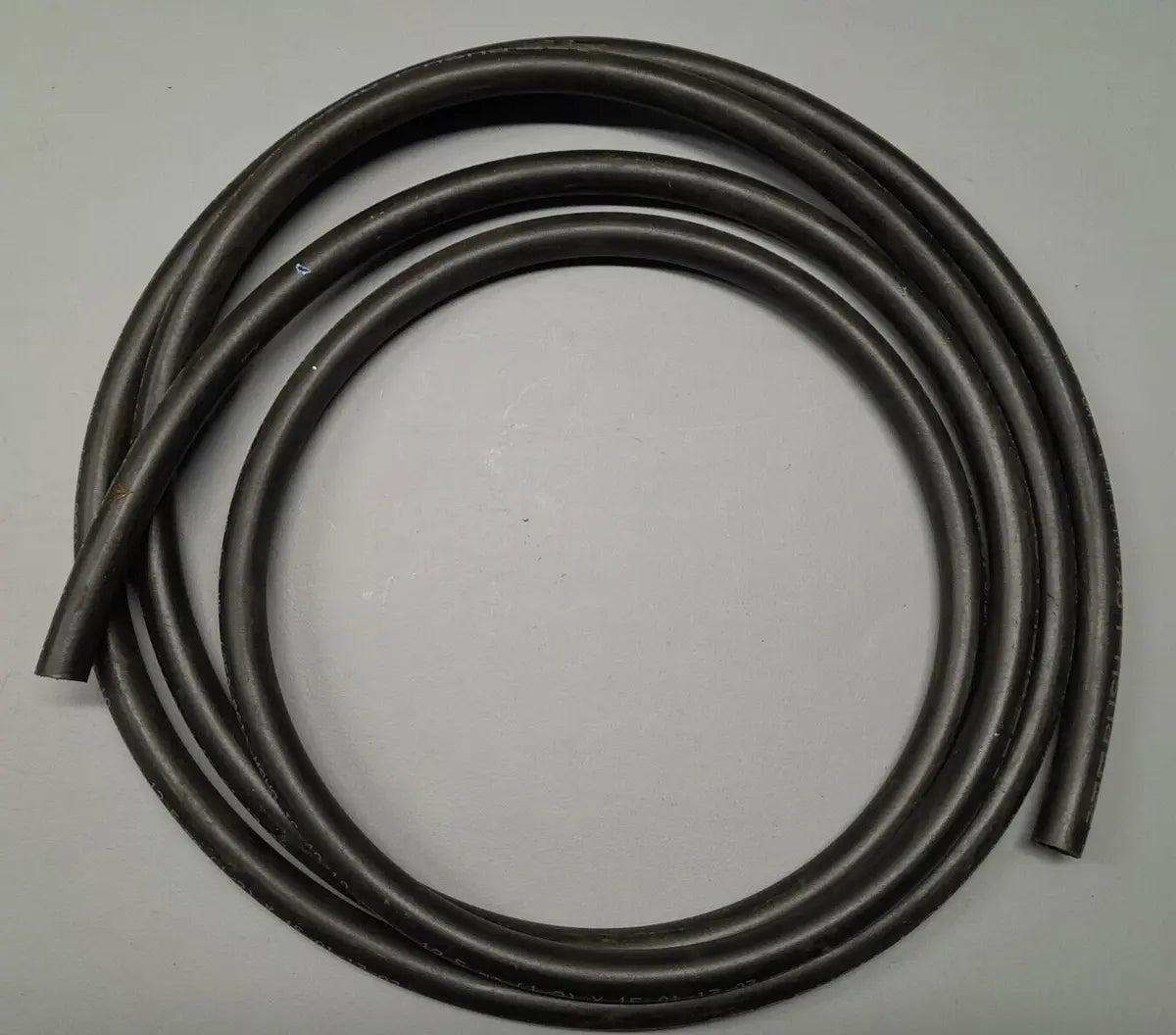

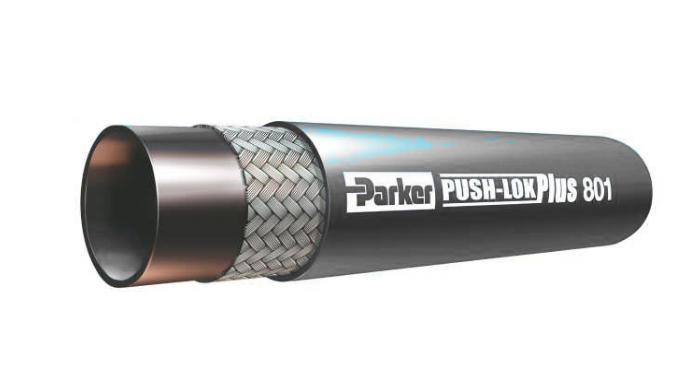

Parker 801-4 Hose - Black
Parker 801-4 Hose - Black
Regular price
$2.60
Regular price
Sale price
$2.60
Unit price
/
per
Couldn't load pickup availability
This hose is ordered by the foot.

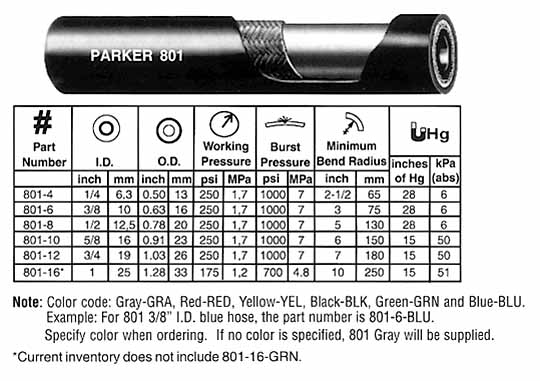

This is 1/4" HOSE
-4 = 1/4"
-6 = 3/8"
-8 = 1/2"
-10 = 5/8"
Tech Specifications
| Maximum Operating Temperature | (Water) 85 °C |
| Compatible Fitting | HY or 82 Series Fittings |
| Cover Color | Blue |
| Maximum Operating Temperature | (Water) 185 °F |
| Hose Outside Diameter | 12,7 mm |
| Vacuum Pressure Rating | 28 Inch-Hg |
| Vacuum Pressure Rating | 711 mm-Hg |
| Division | Hose Products Division |
| Minimum Operating Temperature | (Oil) -40 °F |
| Design Factor | 4:01 |
| Maximum Operating Temperature | (Oil) 125 °C |
| Nominal Hose Inside Diameter | 6 |
| Cover Material | Synthetic rubber, MSHA accepted |
| Hose Outside Diameter | 0.5 inch |
| Minimum Bend Radius | 65 mm |
| Hose Inside Diameter | 1/4 inch |
| Weight | 0,13 kg/m |
| Maximum Operating Pressure | 2,4 MPa |
| Minimum Operating Temperature | (Oil) -40 °C |
| Hose Cover Type | Synthetic rubber |
| Maximum Operating Temperature | (Oil) 257 °F |
| Hose I.D. (size) | 4 |
| Hose Inner Tube Material | Synthetic rubber |
| Weight | 0.09 lb/ft |
| Maximum Operating Pressure | 350 psi |
| Application | Petroleum base hydraulic fluids, lubricating oils, and antifreeze solutions |
| Maximum Operating Temperature | (Air) 70 °C |
| Minimum Bend Radius | 2-1/2 inch |
| Hose Inside Diameter | 6,3 mm |
| Maximum Operating Temperature | (Air) 158 °F |
